Metal gratings

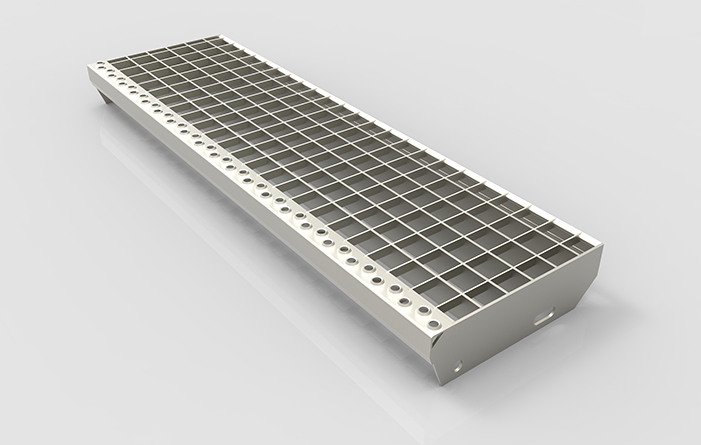

Pressure Locked Grating Stairs

  • Dimensions: 1000 x 270 mm
  • Pitch : 33x33mm
  • Bearing bar : 30x3 mm
  • Banding Bar : 30x3 mm
  • Hot dip galvanized acc. to DIN EN ISO1461 Material: S 235 JR
  • Dimensions: 1200 x 270 mm
  • Pitch : 33x33mm
  • Bearing bar : 40x3 mm
  • Banding Bar : 40x3 mm
  • Hot dip galvanized acc. to DIN EN ISO1461 Material: S 235 JR
Available sizes in stock are the following :

Sheet size Opening dimensions Bearing bar
3000x1000 mm 34x38 mm 25x2 mm
2000x1000 mm 34x38 mm 25x2 mm
3000x1000 mm 100x40 mm 30x3 mm
2000x1000 mm 100x40 mm 30x3 mm
Other sizes can be available upon request.
